FULL-COLOR FLEXIBLE MAT
The amaran F21c is a 2’x1’ ultra-lightweight flexible LED mat that offers outstanding light output and color rendering for indie filmmakers, videographers, content creators, and photographers who need a versatile and flexible lighting solution or want to add a splash of color to their scene.

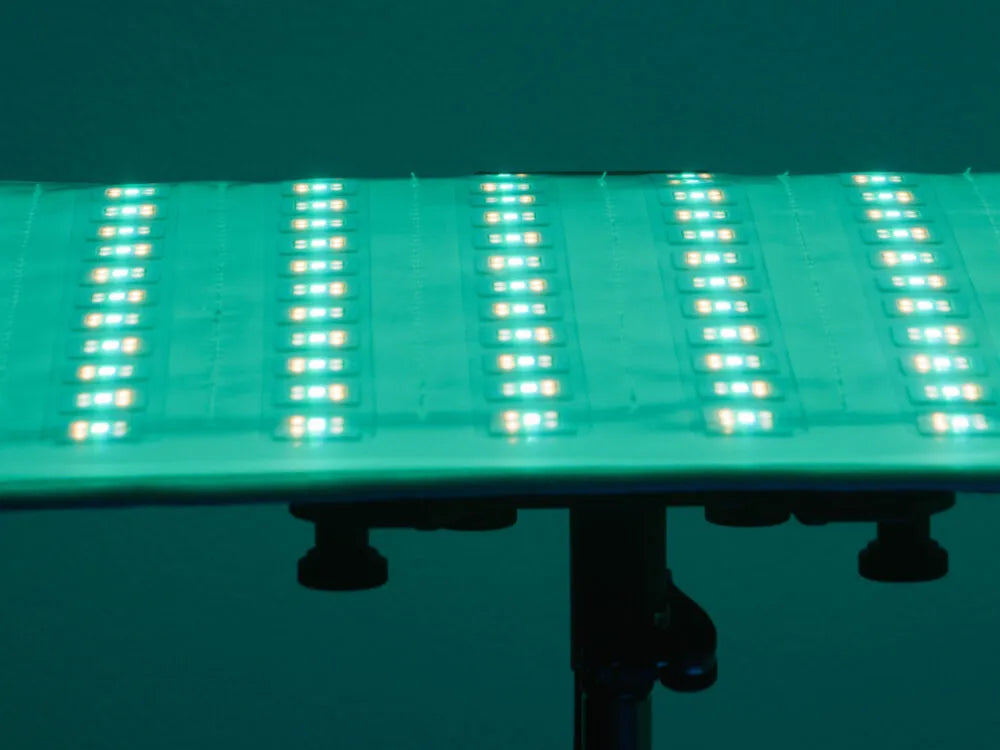

2X1 FORM FACTOR
As an ultra-light, ultra-thin fabric light, the F21c is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a simple, soft light that can fold compactly, it is the perfect close-up key light. Its traditional 2’x1’ form factor allows the F21c to provide ample surface area for an innately soft light, while still producing enough intensity to impact the scene.

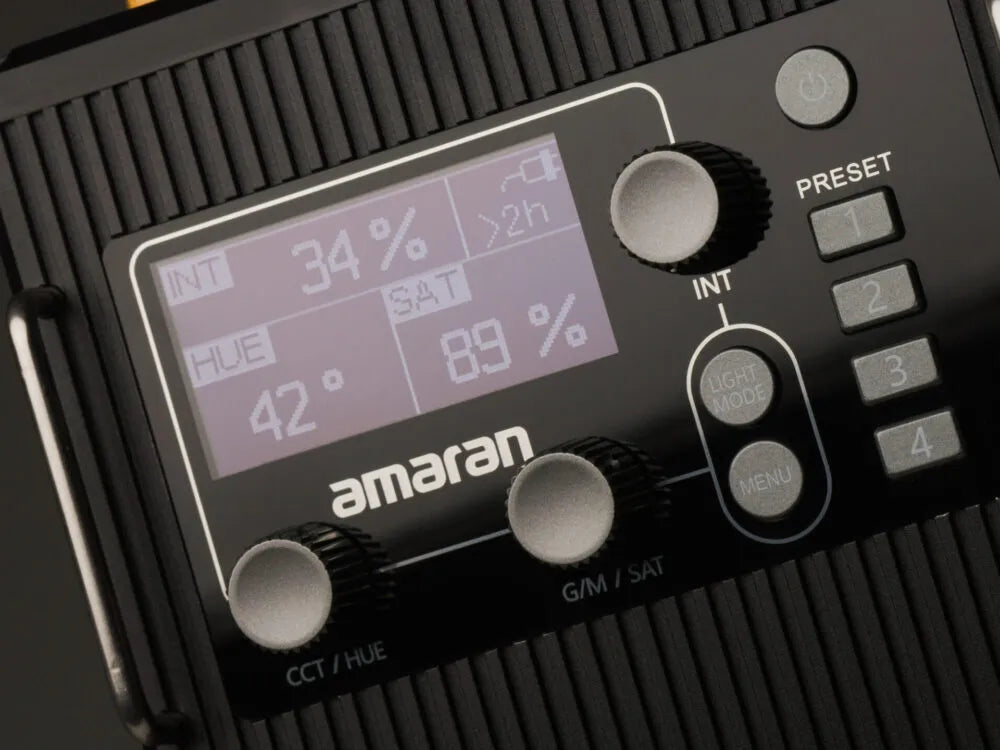

FULL COLOR CONTROL
With its integrated RGBWW chipset, the F21c flexible panel grants you full control over creative lighting decisions, or adding a splash of color to your scene through its tunable CCT from 2,500K to 7,500K with green-magenta adjustment, 360º HSI control, 46 color gel presets, 15 built-in lighting effects, and 4 user-configurable preset buttons.

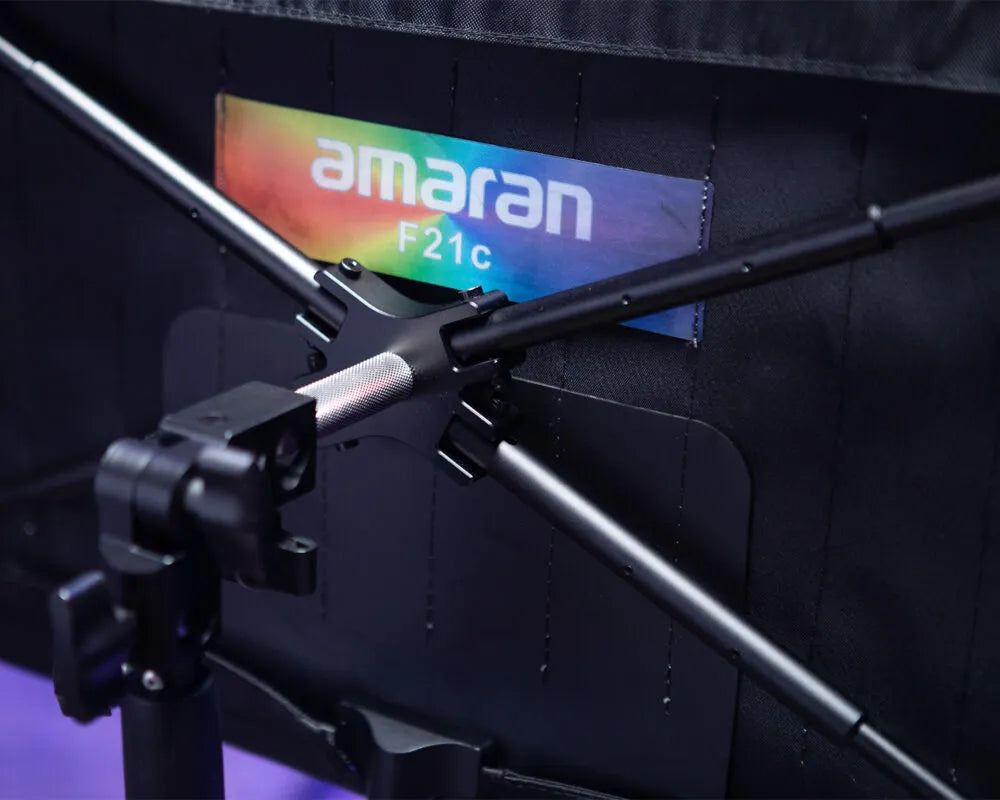

ALL-NEW X BRACKET
The F21c now features a new and improved X Bracket that provides enhanced rigidity and security for your light mat. The X Bracket’s support tubes each have a 2-stage spring-loaded design, ensuring that the light mat is stretched taut and the bracket always stays attached. It is easy to set up and packs compactly, while also featuring an integrated knurled baby pin for easy mounting.
View the amaran F21/F22 Bracket Replacement Program
POWER SOLUTIONS
For creators looking for a compact and portable lighting solution with a seamless user experience, the F21c control box features a multi-voltage V-Mount or Gold-Mount battery plate compatible with 14.4V/26V/28.8V batteries. Full output can also be achieved using the AC power supply.

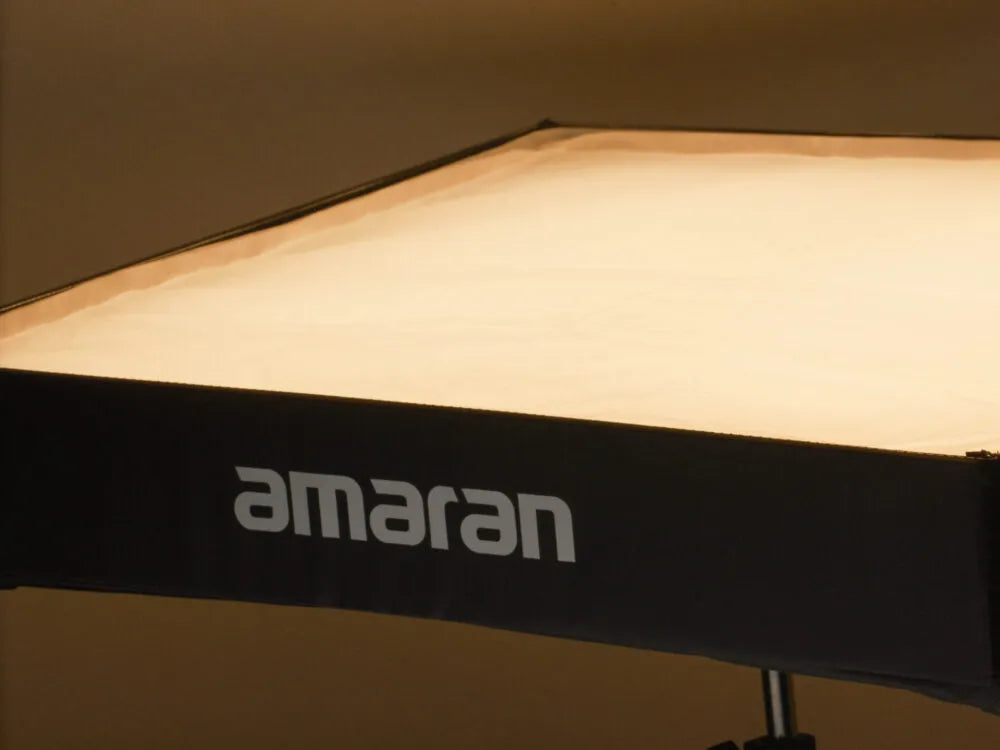

SOFT DIFFUSION
To add a beautifully controlled soft light to your scene, attach the included softbox, one of two strengths of diffusion cloths, or the included light control grid using the integrated hook-and-loop fabric to further finesse your lighting design. The F21c can also be combined with the amaran F21 Lantern with light control skirt to extend the fixture as a volumetric lantern or pancake light.

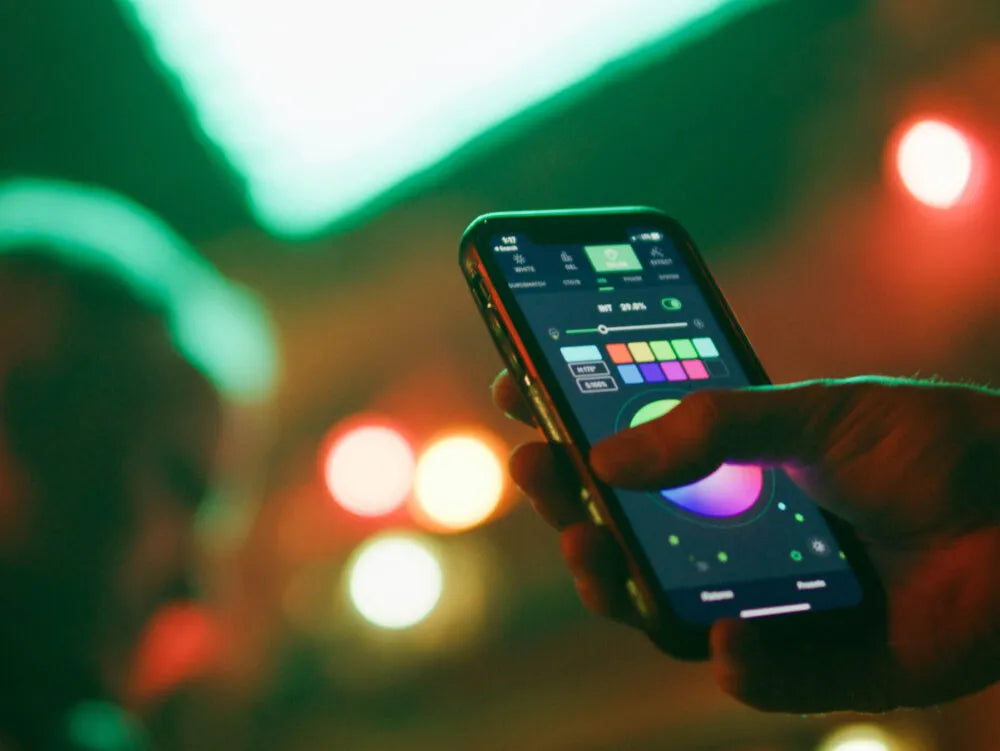

SIDUS LINK APP
For content creators who prefer wireless controls to spend more time behind or in front of the camera, the Sidus Link app will allow you to utilize tools unique to the Aputure and amaran ecosystems to control the F21x. With the Source Match, Color Picker, Gel Control and Custom FX functions all in the palm of your hand, choosing the perfect color for the scene has never been easier.
PROFESSIONAL CONTROLS
In addition to controlling your lighting design from Sidus Link, the F21c can be controlled externally via wired DMX with the USB-C to 5-Pin DMX512 In & Out Adapter*, adding professional-level control to your favorite flexible light mat.
* USB-C to 5-Pin DMX512 In & Out Adapter sold separately.
Technical Specifications
CCT
2500K~7500K
CRI
≥95
TLCI
≥98
CQS
≥96
TM-30 RF (Average)
94
TM-30 RG (Average)
102
SSI (Tungsten)
≥83
SSI (D56)
≥73
Beam Angle
180°
Max Power Output
≤100W
Max Power Consumption
≤120W
Operating Current
2.5A
AC Power Supply
48V DC
D-Tap Battery
12-28.8V DC
Battery Compatibility
16.8V, 26V, 28.8V full power output
DC Input
(3m) DC Self-locking
AC Power Cable
Self-locking IEC C13 AC Power Cable (4m)
Operating Temperature
-10°C ~ 40°C / -4°F ~ 113°F
Control Methods
On-board, Sidus Link App, DMX
Connectivity
Bluetooth 5.0 (Sidus Mesh)
Bluetooth Operating Range
≥80m / 262.5ft
Firmware Upgradeable
Sidus Link OTA
Display Type
OLED
Fixture Cooling Method
Natural Dissipation
Control Box Cooling Method
Natural Dissipation
Umbrella Holder
Yes
Soft Box
Yes
Mounting
1/4-20in * 3, Tilting Support Column
Estimated LED Lifetime (L70)
50,000 Hours
Estimated Color Shift Over Lifetime (CCT)
2% over 6,000 Hours
Certifications
CE, FCC, cTUVus, KC, NCC, ROHS
View all
View Less
Dimensions
Fixture
60*30*0.5cm / 23.6*11.8*.2in
Aperture
50*23cm / 19*9in
Control Box
19*15*7cm / 7.4*5.9*2.7in
Carrying Case
66*35*10.5cm / 25.9*13.7*4.1in
Weights
Fixture
0.44kg / .9lbs
Control Box
1.2kg / 2.6lbs
Power Supply
0.7kg / 1.5lbs
Mounting Bracket -- 0.66kg / 1.4lbs
Mounting Bracket -- 0.66kg / 1.4lbs
Photometrics
| CCT | Distance | No Soft Box | With Soft Box (1/2 Grid Cloth Diffusion) | With Soft Box (2.5 Stop Diffusion) |
| .5M | 9,660 lux / 897 fc | 5,620 lux / 522 fc | 4,100 lux / 381 fc | |
| 2500K | 1M | 2,770 lux / 257 fc | 1,680 lux / 156 fc | 1,119 lux / 104 fc |
| 3M | 330 lux / 31 fc | 231 lux / 22 fc | 158 lux / 15 fc | |
| .5M | 9,860 lux / 916 fc | 5,870 lux / 545 fc | 4,250 lux / 395 fc | |
| 3200K | 1M | 2,890 lux / 269 fc | 1,754 lux / 163 fc | 1,176 lux / 109 fc |
| 3M | 344 lux / 32 fc | 240 lux / 22 fc | 163 lux / 15 fc | |
| .5M | 10,420 lux / 968 fc | 6,250 lux / 581 fc | 4,510 lux / 419 fc | |
| 4300K | 1M | 3,060 lux / 284 fc | 1,860 lux / 173 fc | 1,253 lux / 116 fc |
| 3M | 367 lux / 34 fc | 256 lux / 24 fc | 173 lux / 16 fc | |
| .5M | 11,420 lux / 1,061 fc | 6,850 lux / 636 fc | 4,940 lux / 459 fc | |
| 5600K | 1M | 3,360 lux / 312 fc | 2,048 lux / 190 fc | 1,380 lux / 128 fc |
| 3M | 403 lux / 37 fc | 280 lux / 26 fc | 191 lux / 18 fc | |
| .5M | 12,150 lux / 1,129 fc | 7,300 lux / 678 fc | 5,230 lux / 486 fc | |
| 6500K | 1M | 3,560 lux / 331 fc | 2,182 lux / 203 fc | 1,470 lux / 137 fc |
| 3M | 430 lux / 40 fc | 299 lux / 28 fc | 203 lux / 19 fc | |
| .5M | 11,750 lux / 1,092 fc | 7,060 lux / 656 fc | 5,040 lux / 468 fc | |
| 7500K | 1M | 3,460 lux / 321 fc | 2,120 lux / 197 fc | 1,432 lux / 133 fc |
| 3M | 417 lux / 39 fc | 290 lux / 27 fc | 197 lux / 18 fc |
