AMARAN P60X

60W Output Bi-Color Lensed LED Panel

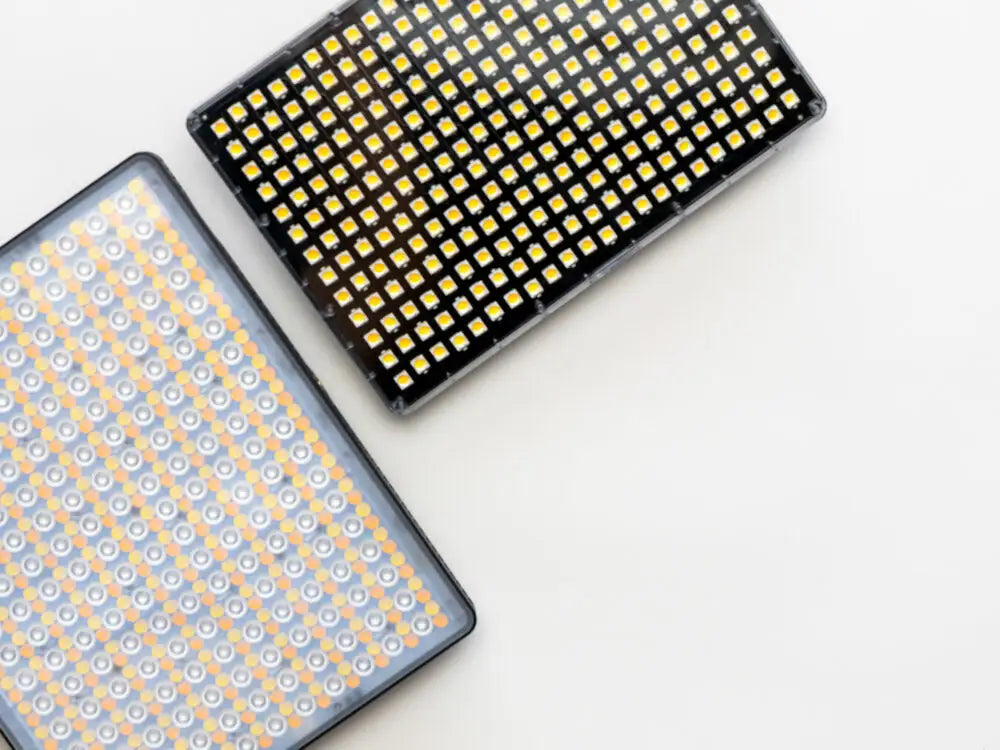

IT'S TIME FOR AN UPGRADE

The amaran P60x is an bi-color Lensed LED Panel with 60W of intense output and is part of the newest generation of amaran LED panels. The P60x builds upon many of the existing features of previous amaran panels, including battery power & charging and compact form factor, then upgrades them with an expanded bi-color CCT range, increased durability, and Sidus Link App control. The P60x and P60c usher in a new generation of lighting for creators of all types by combining features to make them the best LED panels in their class.

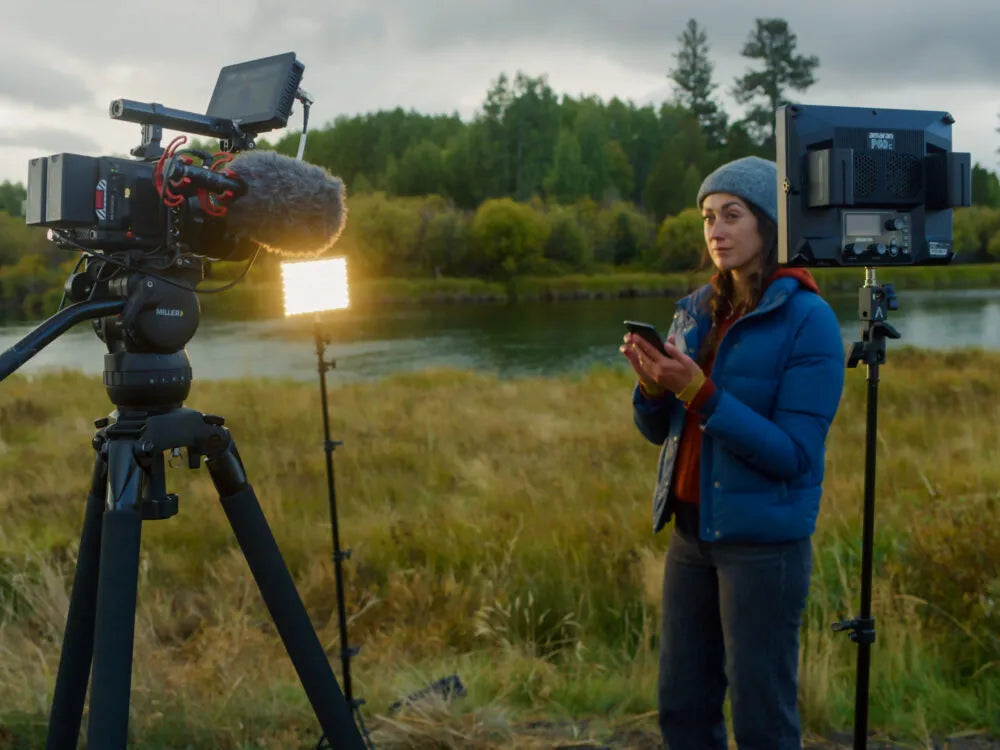

PACKS A PUNCH

Utilizing its 60W LED Output, with 78W max power draw, the amaran P60x is capable of outputting 5,070 lux at 1 meter (5600K) due to its optical design, which gives it a 45° beam angle. Inside its compact form factor lies the ability to compete with difficult lighting conditions to make your subject shine. The amaran P60x uses a unique led configuration that creates more organic shadows and minimizes the obvious multi-shadow effects from LEDs arranged in a strict grid pattern.

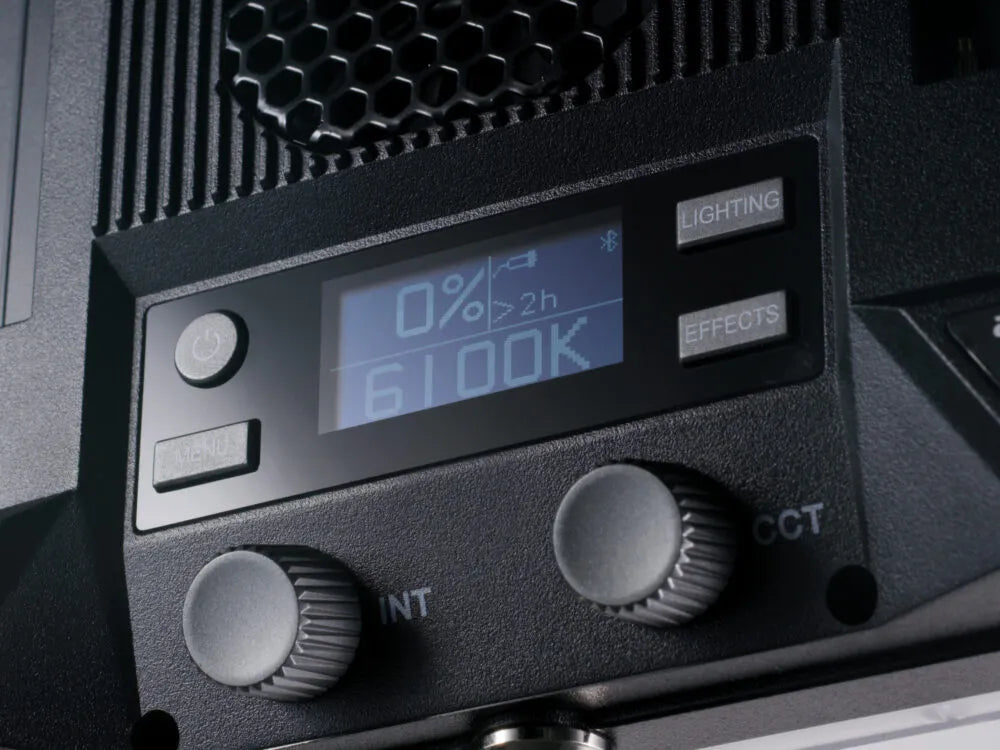

BROAD CCT RANGE

The bi-color LED chipset of the amaran P60x gives it the ability to natively adjust its color temperature between 3200K to 6500K, resulting in an expanded bi-color range that will match the color temperature of nearly an environment you encounter.

BEAUTIFUL COLOR FIDELITY

Built with the best-in-class LED technology, and precision-designed optics to achieve even color blending and more organic shadow production, the amaran P60x is able to boast impeccable color quality and skin tone reproduction. Its bi-color LED chipset is able to reach scores of CRI 95+, TLCI 97+, SSI (Tungsten) 84, and SSI (D56) 72, producing colors on par with some of the best lights in the film industry.

BATTERY POWER

With its 78W max power draw, in addition to traditional AC power, the amaran P60x can be powered using two Sony NP-F style batteries. Two NP-F970* batteries are capable of powering the P60x for over an hour. Building on features from the previous generation of amaran products, the P60x also includes an integrated charging circuit that allows it to charge Sony NP-F batteries when the fixture is connected to AC power. Using the D-Tap Power Cable (2-Pin)*, users can also operate the amaran P60x using D-Tap V-Mount and Gold Mount batteries. *Not Included

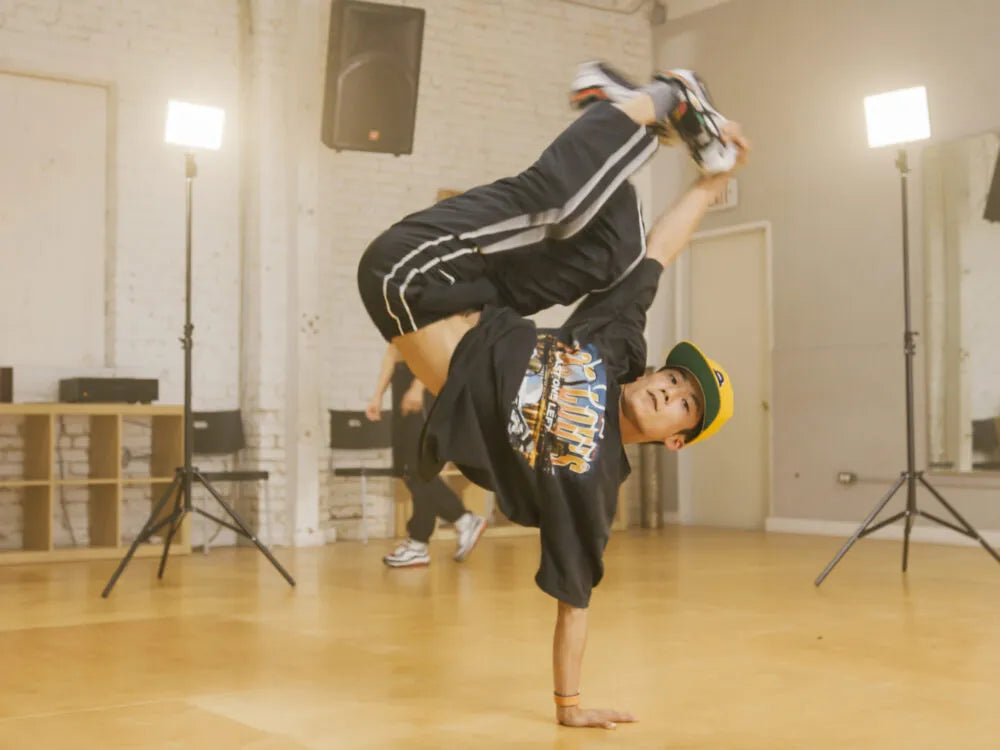

LIGHTING FX

The amaran P60x is capable of accessing a variety of lighting FX that fully utilize its bi-color LED chipset, including: Paparazzi, Strobe, Fireworks, & Pulse.

SIDUS LINK APP CONTROL

Lighting should be fun and easy. With the integration of Sidus Mesh, the amaran P60x gives you professional lighting control with a single app, so you can adjust your light without ever having to leave your camera. Mesh technology means that every light in the Aputure and amaran product lines will automatically connect to each other and expand the range of your network. With the Sidus Link App, you can control up to 100 lights from your smartphone or tablet. Adjust each light to perfection by adjusting aspects like brightness, color temperature, built-in effects, and even programming effects between multiple fixtures.

Technical Specifications

CCT

3200K~6500K

CRI

≥95

TLCI

≥97

CQS

≥95

TM-30 RF (Average)

93

TM-30 RG (Average)

104

SSI (Tungsten)

≥84

SSI (D56)

≥72

Beam Angle (Half-Peak Angle)

45°

Max Power Output

≤60W

Max Power Consumption

≤78W

Operating Current

4.5A

Voltage (AC Power Supply)

15V DC

Voltage (D-Tap Battery)

12-16.8V DC

Voltage (NP-F Battery)

6.5V-8.4V DC

Battery Charging (Type)

Sony NP-F Style

DC Input

2-Pin DC Self-locking Waterproof

AC Power Cable

Self-locking IEC C13 AC Power Cable (1.5m)

Operating Temperature

-20°C ~ 45°C / -4°F ~ 113°F

Control Methods

On-board, Sidus Link App

Connectivity

Bluetooth 5.0 (Sidus Mesh)

Bluetooth Operating Range

≥80m / 262.5ft

Firmware Upgradeable

Sidus Link OTA

Display Type

OLED

Cooling Method

Active Cooling

Mounting

1/4-20in * 3, Tilting Support Column

Estimated LED Lifetime (L70)

50,000 Hours

Estimated Color Shift Over Lifetime (CCT)

2% over 6,000 Hours

Certifications

CE, FCC, cTUVus, KC, NCC, ROHS

View all

View Less

Dimensions

Fixture

25.1*17.5*3.95cm / 9.8*6.8*1.5in

Aperture

25.07*17.37cm / 9.87*6.84in

Soft Box (Collapsed)

20*20*2.5cm / 7.87*7.87*9.84in

Soft Box (Built)

39.5*28.5*10cm / 15.55*11.22*3.94in

Carrying Case

25.7*18*9.5cm / 10.12*7.09*3.74in

Weights

Fixture

0.979kg / 2.15lbs

Soft Box

0.17kg / .37lbs

Power Supply

0.50kg / 1.1lbs

Mounting Bracket

0.24kg / .52lbs

Photometrics

CCTDistance No Softbox With Softbox
.5M17,570 lux / 1,632 fc3,480 lux / 323 fc
3200K1M4,860 lux / 452 fc971 lux / 90 fc
2M1,280 lux / 119 fc254 lux / 24 fc
3M539 lux / 50 fc116 lux / 11 fc
.5M17,670 lux / 1,642 fc3,560 lux / 331 fc
4300K1M4,940 lux / 459 fc991 lux / 92 fc
2M1,283 lux / 119 fc261 lux / 24 fc
3M550 lux / 51 fc119 lux / 11 fc
.5M18,120 lux / 1,683 fc3,660 lux / 340 fc
5600K1M5,070 lux / 471 fc1,023 lux / 95 fc
2M1,328 lux / 123 fc268 lux / 25 fc
3M572 lux / 53 fc123 lux / 11 fc
.5M18,410 lux / 1,710 fc3,730 lux / 347 fc
6500K1M5,180 lux / 481 fc1,041 lux / 97 fc
2M1,354 lux / 126 fc273 lux / 25 fc
3M585 lux / 54 fc126 lux / 12 fc
