amaran PT4c 2-Light Production Kit

AMARAN PT4C 2-LIGHT PRODUCTION KIT

4-Foot RGBWW Battery-Powered LED Pixel Tube 2-Light Kit

PRODUCTION READY

For filmmakers looking for more lights for in-camera practicals, symmetrical lighting for one or multiple subjects, and twice the output of a standalone fixture, the PT4c 2-Light Production Kit unlocks even more possibilities to enhance your frame. The production-ready kit expands the full-sized pixel tube's capabilities with 2x the available light, and is fully equipped with additional accessories for all your creative needs.

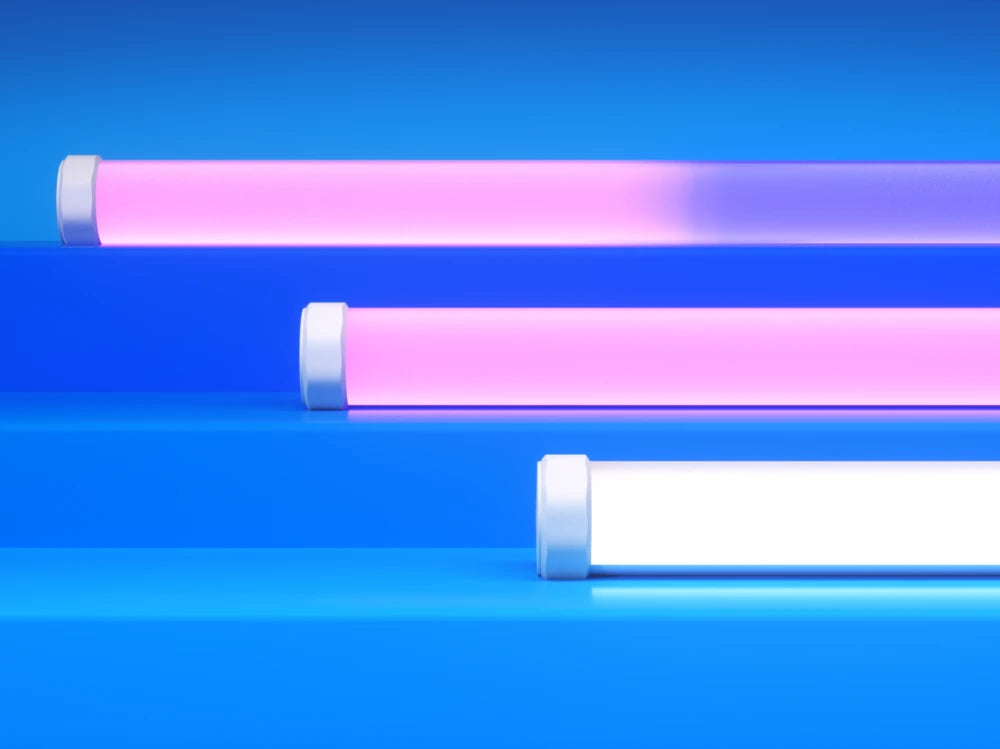

CREATE YOUR FLOW

The amaran PT4c 2-Light Kit is ideal for creators and filmmakers who need a pair of 4-foot battery-powered pixel tubes, featuring multiple pixels, RGBWW color quality, Sidus Link app control, and no-hassle mounting solutions, allowing you to unleash new creative possibilities.

DESIGNED FOR CREATORS

The PT4c shines as an effects, fill, eye light, and so much more. Whether used for practical lighting backgrounds, producing unique lighting effects for long-exposure photography, creating linear reflections over intricate sets for product cinematography, or adding visual interest to stylized music videos and commercials, the PT4c grants you the freedom to get creative and bring your lighting designs to life.

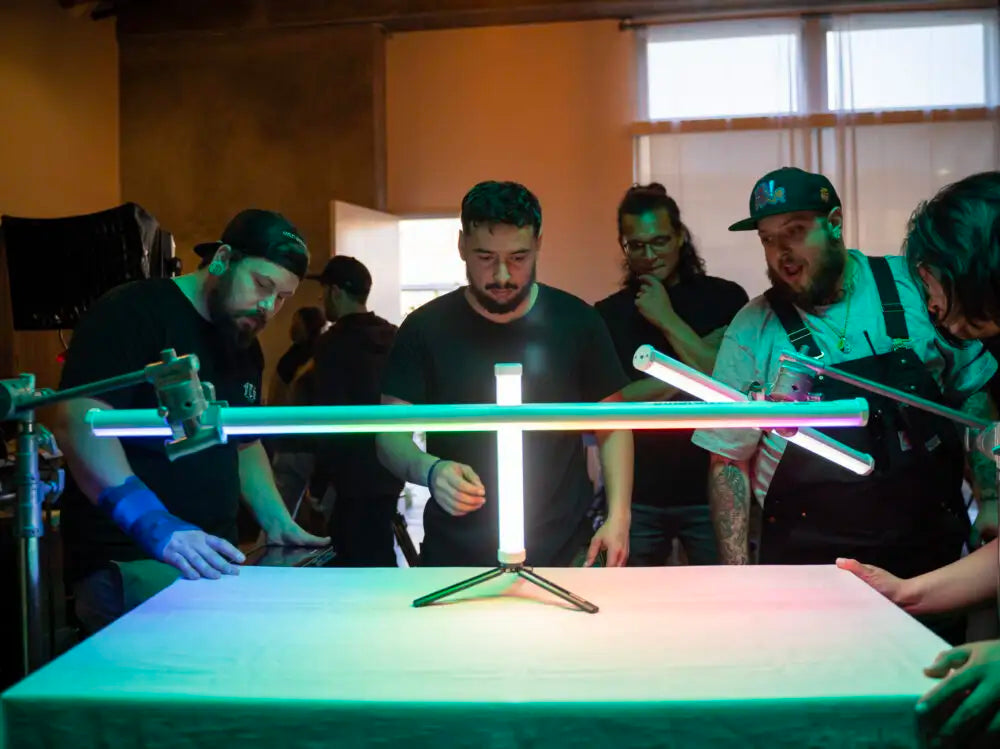

ENDLESS MOUNTING POSSIBILITIES

Creating interesting visuals and set pieces have never been easier with the PT4c 2-Light Production Kit. For enhanced versatility, the pixelated light has a 5-sided end cap design, allowing it to be positioned at 5 different angles, from to 45º, 90º, 135º, and 180º of rotation. The pixel tube kit is also designed to make mounting as easy possible with the 4 included magnetic T12 brackets, 2 3/8-16in eye bolts, and 2 floor stands.

PERFECT PIXEL CAPABILITIES

With 16 lighting zones that can be independently controlled, the PT4c’s pixel capabilities introduce new and exciting avenues to the amaran family and outshine other lights with a new layer of effects. Use its 7 pre-programmed Pixel FX to create some truly unique and dynamic pixelated effects across its multiple pixels and take your creations to the next level.

BUILT-IN BATTERIES

The PT4c is powered by a 77Wh internal Lithium-ion battery for up to 170 minutes of run time, and can be charged via USB-C or even fast charge at 32W with PD Quick Charging, reaching its full capacity in approximately 3 hours. The integrated batteries can improve your workflow on-set by granting you the flexibility of placing or hiding the LED Pixel Tubes virtually anywhere.

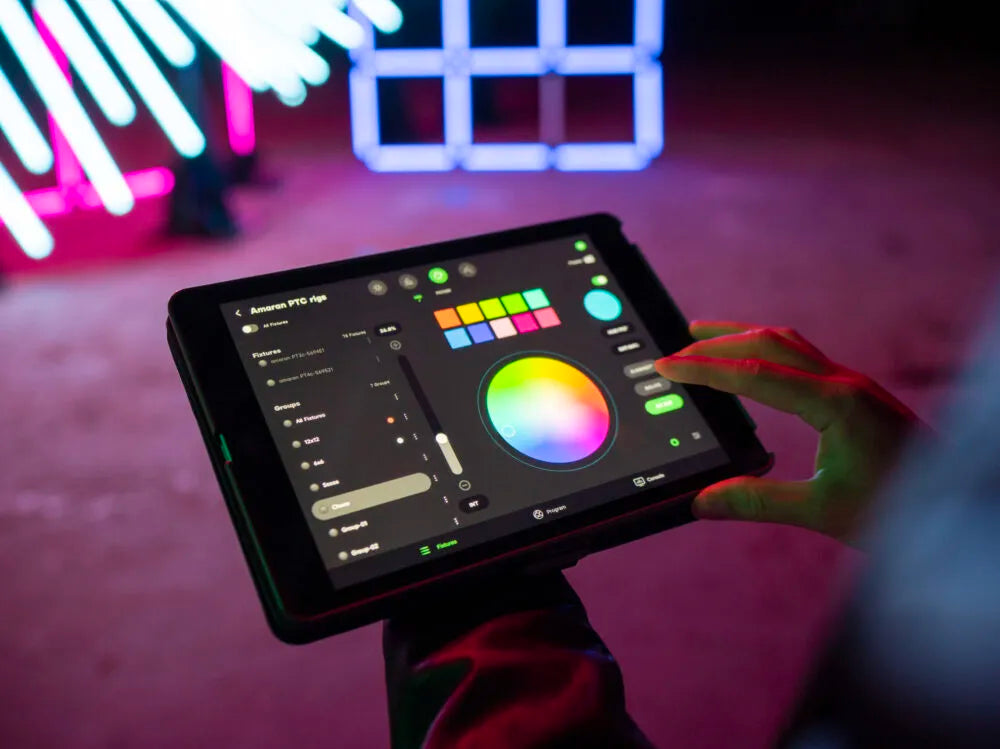

ADVANCED CONTROLS

With the power of the Sidus Link Bluetooth app, you can control all of your Aputure and amaran lights in a scene, activate stunning lighting effects, and ensure that the Pixel Tubes are always up to date. For more advanced console controls, the 2 included amaran USB-C to DMX Adapters unlocks DMX control while simultaneously charging your pixelated tube light, making your workflow even more efficient and seamless.

Technical Specifications

CCT

2,700K - 10,000K

CRI (@5,600K)

95

TLCI (@5,600K)

98

CQS (@5,600K)

96

SSI (D56)

75

SSI (Tungsten)

85

TM-30 RF (@5,600K)

92

TM-30 RG (@5,600K)

100

Max Power Output

23W

Max Power Draw

32W

Pixel Mapping

16 Pixels

Lumens

1,402lm

Beam Angle

180º

Charging Input

USB Type-C PD 32W

Power Supply (Voltage)

USB PD 5V/9V/12V/15V/20V

Power Supply (Cable Length)

1.8m / 70.86in

Battery Voltage

14.8V

Battery Capacity

5200mAh, 77Wh

Battery Runtime

Approx. 170 Mins @ 100% Input

Charge Time

Approx. 190 Mins (5V/2A)

Approx. 228 Mins @ 75% Input

Operating Temperature

-10ºC ~ 40ºC / 14ºF ~ 104ºF

Approx. 321 Mins @ 50% Output

Control Methods

On-board, Sidus Link App, DMX via USB Type-C (Sold Separately)

Approx. 776 Mins @ 10% Output

Firmware Upgradeable

Sidus Link

Wireless Operating Range (Bluetooth)

≤80m / ≤262.5ft

Screen Type

TFT

IP Rating

IP20

CoolIng Method

Passive Cooling

View all

View Less

Dimensions

Fixture

φ42 x 1,200mm / φ1.65 x 47.24in

Magnetic T12 Bracket

54 x 46 x 42mm / 2.12 x 1.81 x 1.65in

Power Adapter

58 x 58 x 29mm / 2.28 x 2.28 x 1.14in

Eyebolt

36 x 20 x 40mm / 1.42 x 0.79 x 1.57in

Mini Tripod

φ35 x 177mm / φ1.38 x 6.97in

USB-C to DMX Adapter Cable

490mm / 19.3in

Carrying Case

1,250 x 139 x 139mm / 49.2 x 5.5 x 5.5in

Weights

Fixture

1.375kg / 3.03lbs

Magnetic T12 Bracket

54g / 0.12lbs

Power Adapter

185g / 0.41lbs

Eyebolt

41g / 0.09lbs

Mini Tripod

175g / 0.38lbs

USB-C to DMX Adapter Cable

95g / 0.2lbs

Total with Case

5.608kg / 12.36lbs

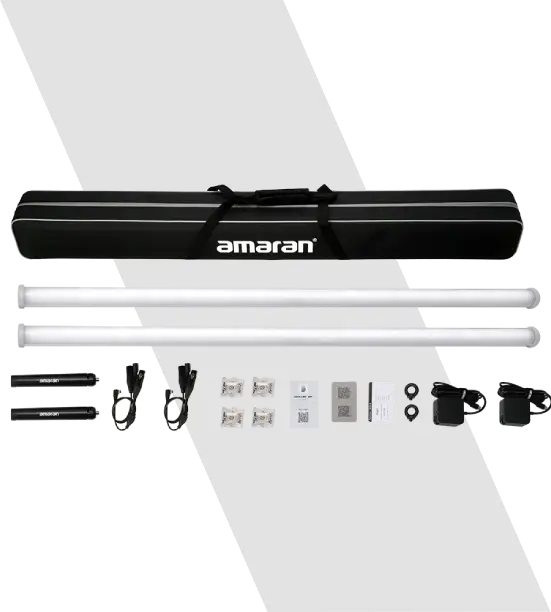

What's in the Box

2x amaran PT4c

2x 45W Power Adapter with USB-C PD Power Cable (1.8m)

2x amaran USB-C to DMX Adapter with USB-C Input

4x Magnetic T12 Bracket

2x 3/8-16in Eyebolt

2x Floor Stand

1x Carrying Case

Photometrics

CCT0.5m1.0m
2,700K867 lux / 81 fc303 lux / 28 fc
3,200K868 lux / 81 fc306 lux / 28 fc
4,300K897 lux / 83 fc316 lux / 29 fc
5,600K956 lux / 89 fc332 lux / 31 fc
6,500K955 lux / 89 fc330 lux / 31 fc
7,500K902 lux / 84 fc322 lux / 30 fc
10,000K842 lux / 78 fc297 lux / 28 fc
Red516 lux / 48 fc191 lux / 18 fc
Green768 lux / 71 fc275 lux / 26 fc
Blue172 lux / 16 fc61 lux / 6 fc
