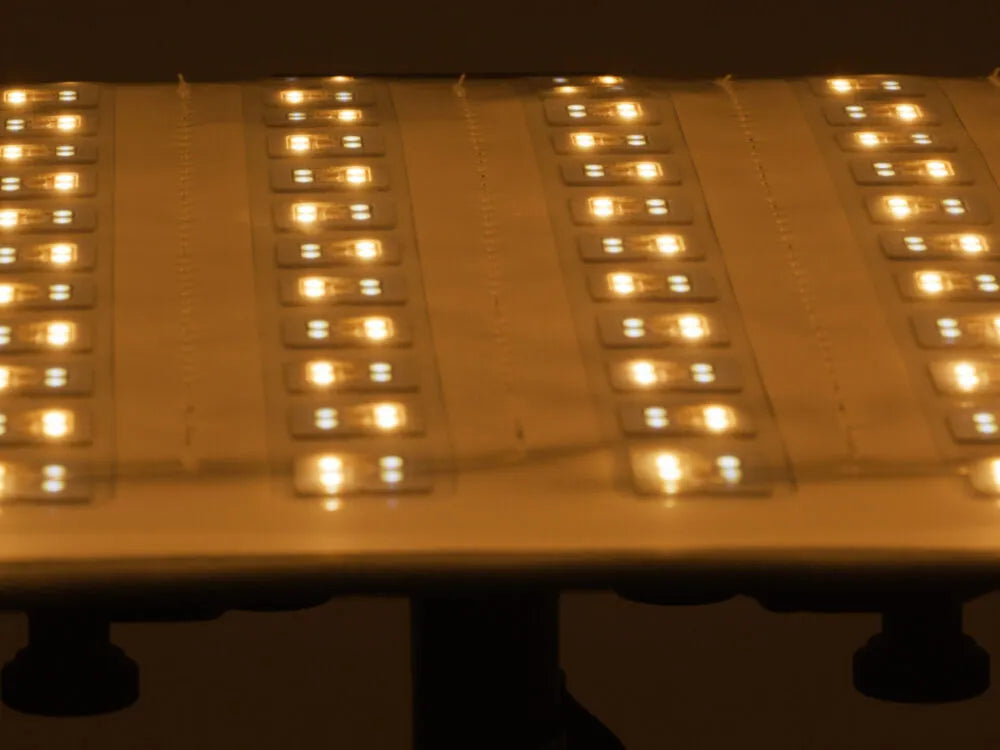

BI-COLOR FLEXIBLE MAT
The amaran F22x is a 2’x2’ ultra-lightweight flexible LED mat that offers outstanding light output and color rendering for indie filmmakers, videographers, content creators, and photographers who need a versatile and flexible lighting solution.

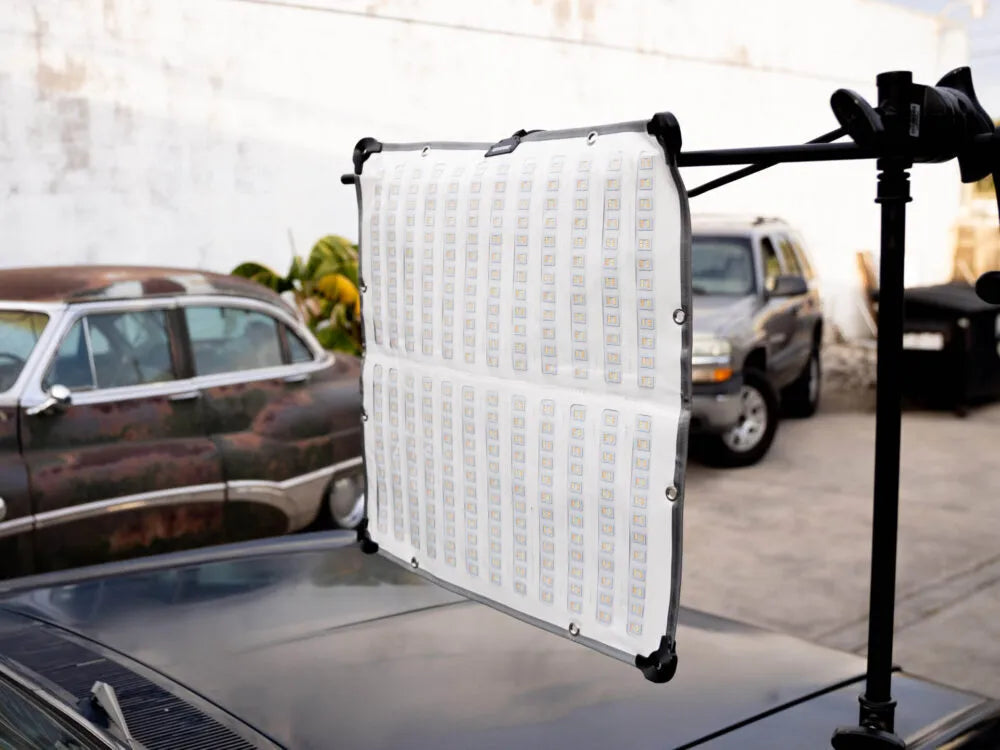

2X2 FORM FACTOR
As an ultra-light, ultra-thin fabric light, the F22x is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a simple, soft light that can fold compactly, it is the perfect close-up key light. Its traditional 2’x2’ square form factor allows the F22x to provide ample surface area for an innately soft light, while still producing enough intensity to impact the scene.

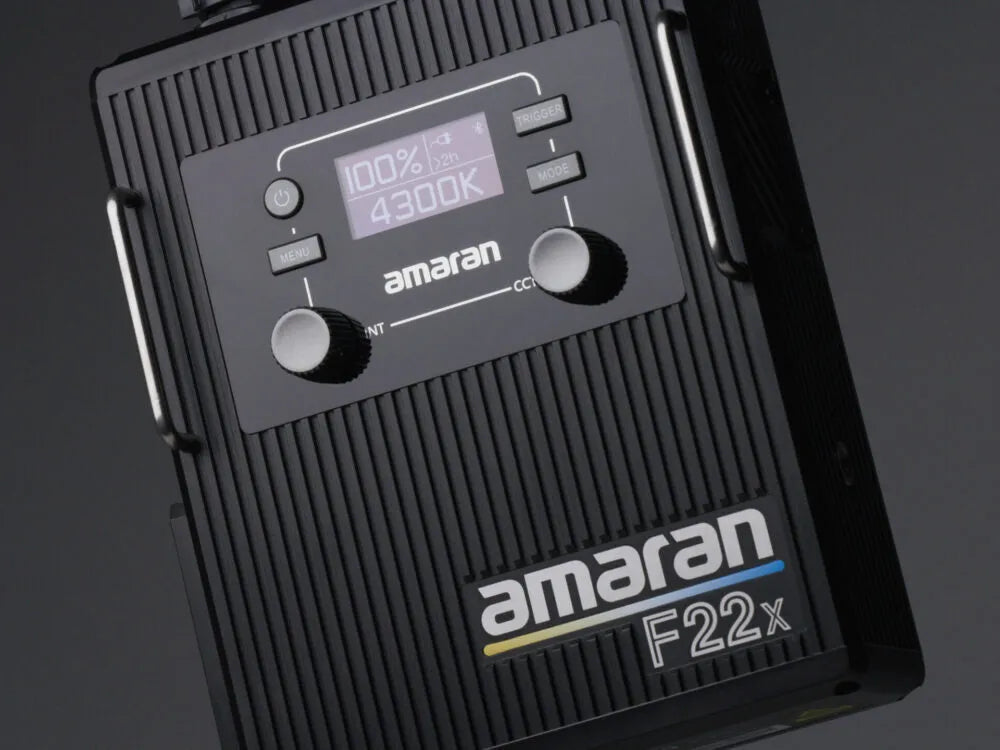

OUTSTANDING LIGHT OUTPUT
With 200W of output power, the ultra-lightweight bi-color flexible panel produces unmatched strength, outputting 6,960+ lux at 1 meter. You can also tune the F22x’s high-output bi-color chipset over its wide CCT range from 2,500K to 7,500K to match a variety of white light environments, coupled with stepless dimming from 0 to 100%, frequency selection for tuning out flicker, and 9 built-in lighting FX.

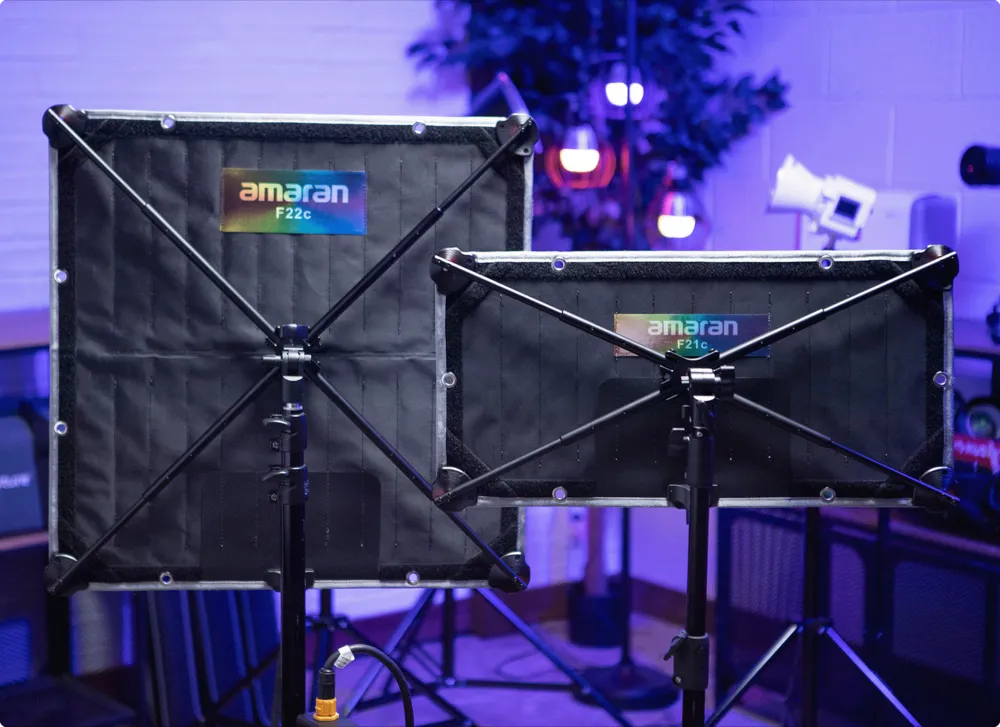

ALL-NEW X BRACKET
The F22x now features a new and improved X Bracket that provides enhanced rigidity and security for your light mat. The X Bracket’s support tubes each have a 2-stage spring-loaded design, ensuring that the light mat is stretched taut and the bracket always stays attached. It is easy to set up and packs compactly, while also featuring an integrated knurled baby pin for easy mounting.
View the amaran F21/F22 Bracket Replacement Program

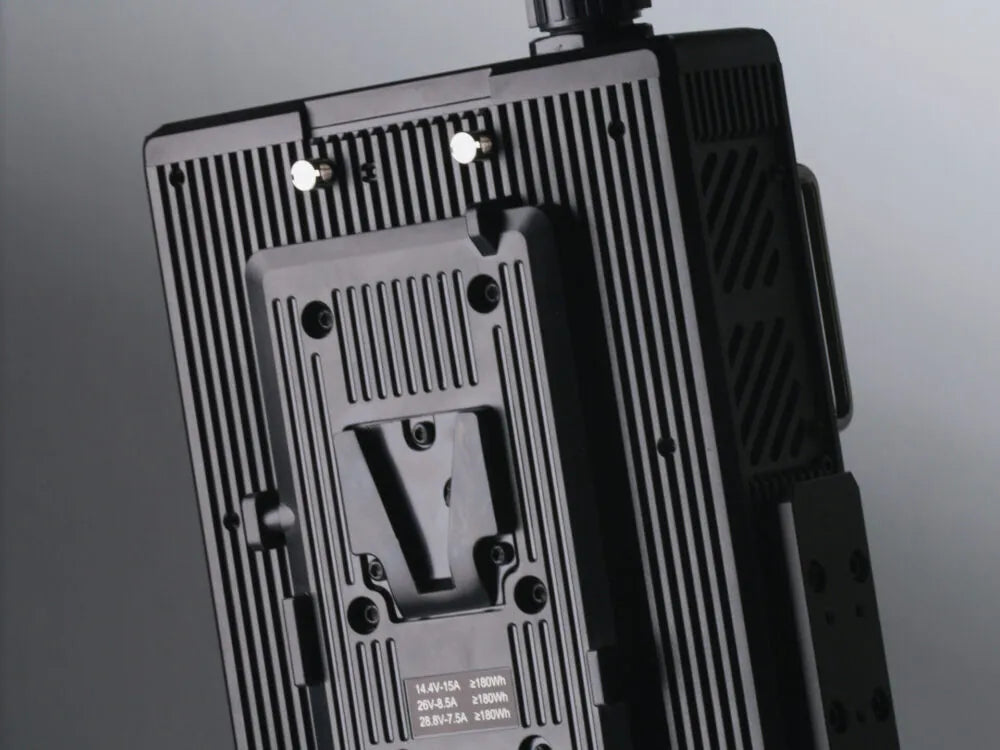

POWER SOLUTIONS
For creators looking for a compact and portable lighting solution with a seamless user experience, the F22x control box features a multi-voltage V-Mount or Gold-Mount battery plate compatible with 14.4V/26V/28.8V/48V batteries. Full output can also be achieved using the AC power supply.

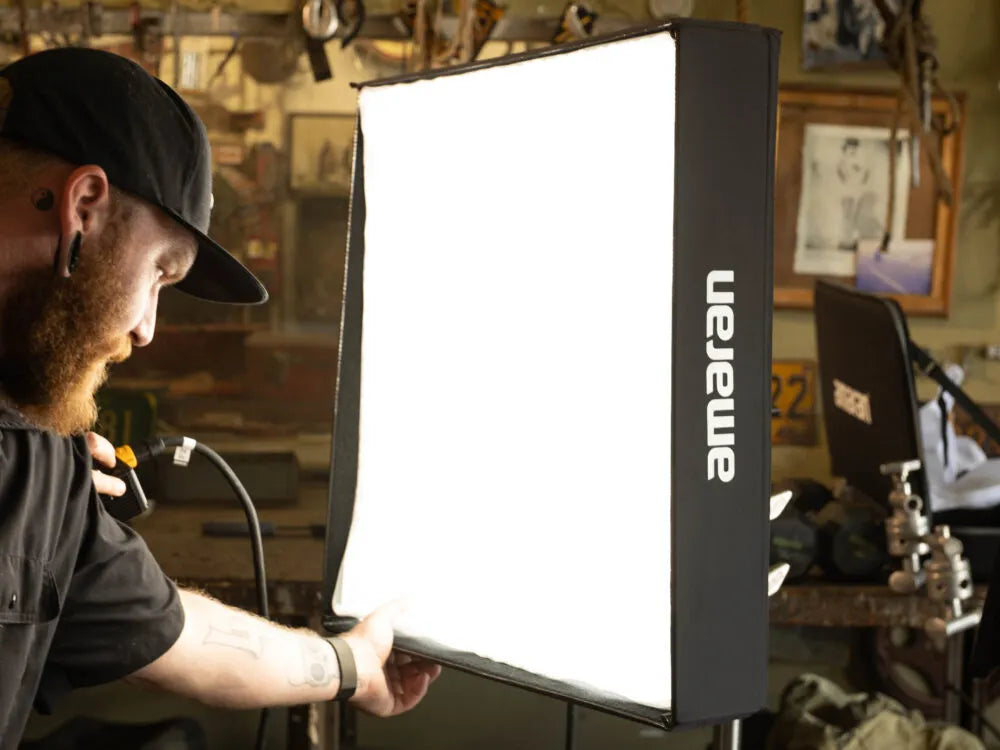

SOFT DIFFUSION
To add a beautifully controlled soft light to your scene, attach the included softbox, one of two strengths of diffusion cloths, or the included light control grid using the integrated hook-and-loop fabric to further finesse your lighting design. The F22x can also be combined with the amaran F22 Lantern with light control skirt to extend the fixture as a volumetric lantern or pancake light.
SIDUS LINK APP
For content creators who prefer wireless controls to spend more time behind or in front of the camera, the Sidus Link app will allow you to utilize tools unique to the Aputure and amaran ecosystems to control the F22x. With the Source Match, Color Picker, Gel Control and Custom FX functions all in the palm of your hand, choosing the perfect color for the scene has never been easier.

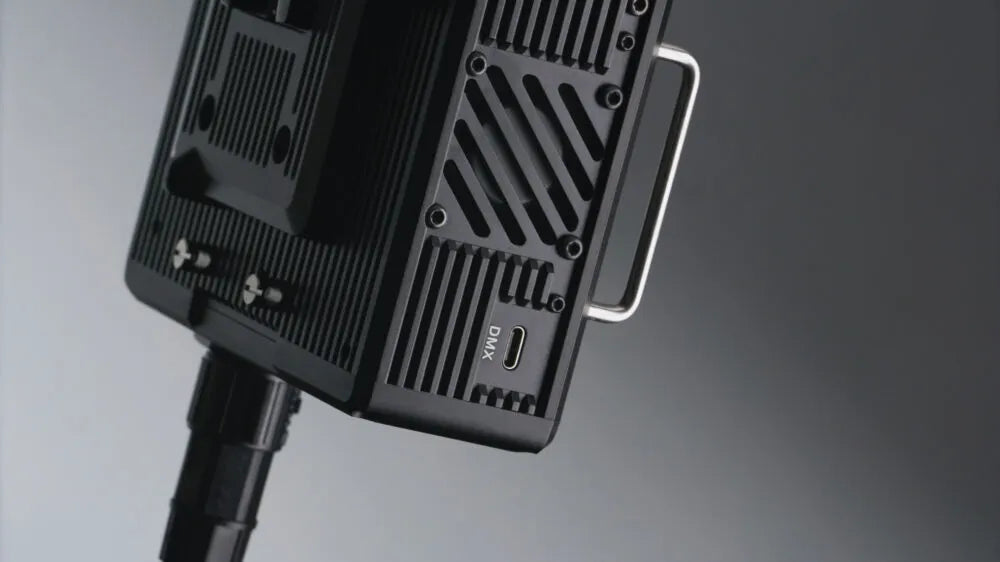

PROFESSIONAL CONTROLS
In addition to controlling your lighting design from Sidus Link, the F22x can be controlled externally via wired DMX with the USB-C to 5-Pin DMX512 In & Out Adapter*, adding professional-level control to your favorite flexible light mat.
* USB-C to 5-Pin DMX512 In & Out Adapter sold separately.
Technical Specifications
CCT
2500K~7500K
CRI
≥95
TLCI
≥98
CQS
≥96
TM-30 RF (Average)
94
TM-30 RG (Average)
104
SSI (Tungsten)
≥81
SSI (D56)
≥72
Beam Angle
180°
Max Power Output
≤200W
Max Power Consumption
≤240W
Operating Current
5A
AC Power Supply
48V DC
D-Tap Battery
12-28.8V DC
Battery Compatibility
16.8V, 26V, 28.8V full power output
DC Input
(3m) DC Self-locking
AC Power Cable
Self-locking IEC C13 AC Power Cable (4m)
Operating Temperature
-10°C ~ 40°C / -4°F ~ 113°F
Control Methods
On-board, Sidus Link App, DMX
Connectivity
Bluetooth 5.0 (Sidus Mesh)
Bluetooth Operating Range
≥80m / 262.5ft
Firmware Upgradeable
Sidus Link OTA
Display Type
OLED
Fixture Cooling Method
Natural Dissipation
Control Box Cooling Method
Natural Dissipation
Umbrella Holder
Yes
Soft Box
Yes
Mounting
1/4-20in * 3, Tilting Support Column
Estimated LED Lifetime (L70)
50,000 Hours
Estimated Color Shift Over Lifetime (CCT)
2% over 6,000 Hours
Certifications
CE, FCC, cTUVus, KC, NCC, ROHS
View all
View Less
Dimensions
Fixture
60 x 60 x 0.5cm / 23.6 x 23.6 x .2in
Aperture
52 x 51cm / 20.4 x 20in
Control Box
19*15*7cm / 7.4*5.9*2.7in
Carrying Case
66*35*10.5cm / 25.9*13.7*4.1in
Weights
Fixture
0.8kg / 1.76lbs
Control Box
1.2kg / 2.6lbs
Power Supply
0.7kg / 1.5lbs
Mounting Bracket
0.66kg / 1.4lbs
Photometrics
| CCT | Distance | No Soft Box | With Soft Box (1/2 Grid Cloth Diffusion) | With Soft Box (2.5 Stop Diffusion) |
| .5M | 19,400 lux / 1,802 fc | 11,540 lux / 1,072 fc | 9,220 lux / 857 fc | |
| 2500K | 1M | 5,710 lux / 531 fc | 3,750 lux / 348 fc | 2,870 lux / 267 fc |
| 3M | 689 lux / 64 fc | 486 lux / 45 fc | 349 lux / 32 fc | |
| .5M | 19,930 lux / 1,852 fc | 12,440 lux / 1,156 fc | 9,870 lux / 917 fc | |
| 3200K | 1M | 6,050 lux / 562 fc | 3,940 lux / 366 fc | 3,087 lux / 287 fc |
| 3M | 706 lux / 66 fc | 512 lux / 48 fc | 387 lux / 36 fc | |
| .5M | 21,710 lux / 2,017 fc | 13,120 lux / 1,219 fc | 10,310 lux / 958 fc | |
| 4300K | 1M | 6,500 lux / 604 fc | 4,210 lux / 391 fc | 3,220 lux / 299 fc |
| 3M | 770 lux / 72 fc | 543 lux / 50 fc | 393 lux / 37 fc | |
| .5M | 23,270 lux / 2,162 fc | 14,040 lux / 1,304 fc | 10,950 lux / 1,017 fc | |
| 5600K | 1M | 6,960 lux / 647 fc | 4,510 lux / 419 fc | 3,450 lux / 321 fc |
| 3M | 824 lux / 77 fc | 582 lux / 54 fc | 422 lux / 39 fc | |
| .5M | 24,470 lux / 2,273 fc | 14,770 lux / 1,372 fc | 11,350 lux / 1,054 fc | |
| 6500K | 1M | 7,200 lux / 669 fc | 4,690 lux / 436 fc | 3,230 lux / 300 fc |
| 3M | 836 lux / 78 fc | 619 lux / 58 fc | 462 lux / 43 fc | |
| .5M | 25,030 lux / 2,325 fc | 15,120 lux / 1,405 fc | 11,800 lux / 1,096 fc | |
| 7500K | 1M | 7,510 lux / 698 fc | 4,860 lux / 452 fc | 3,720 lux / 346 fc |
| 3M | 886 lux / 82 fc | 626 lux / 58 fc | 455 lux / 42 fc |
