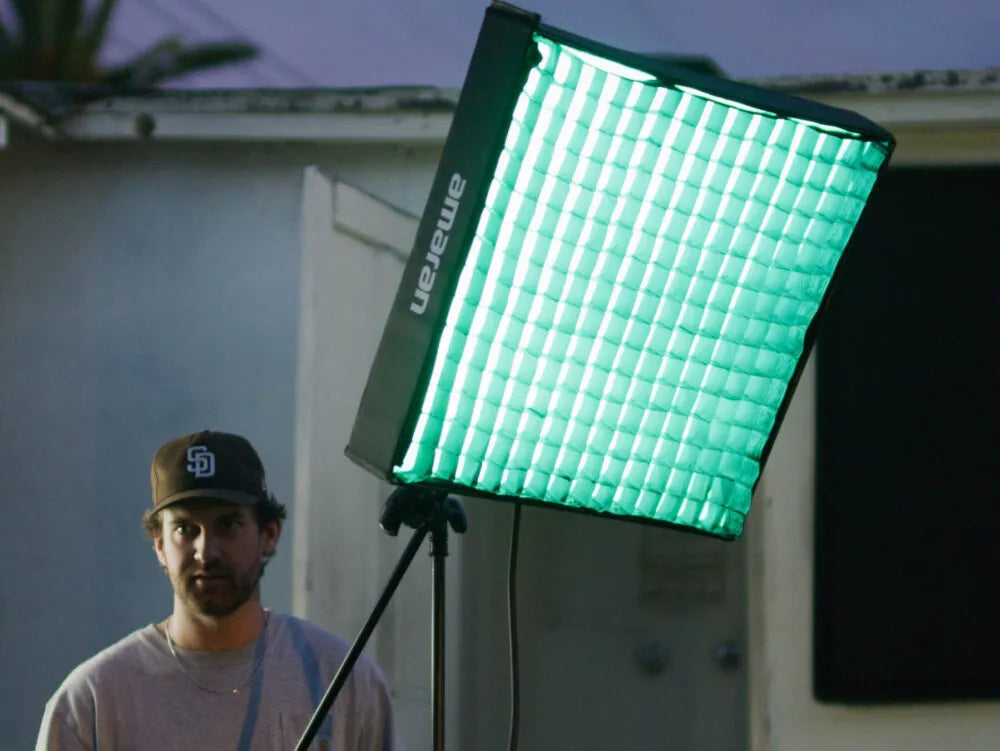

FULL-COLOR FLEXIBLE MAT
The amaran F22c is a 2’x2’ ultra-lightweight flexible LED mat that offers outstanding light output and color rendering for indie filmmakers, videographers, content creators, and photographers who need a versatile and flexible lighting solution or want to add a splash of color to their scene.
2X2 FORM FACTOR
As an ultra-light, ultra-thin fabric light, the F22c is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a simple, soft light that can fold compactly, it is the perfect close-up key light. Its traditional 2’x2’ form factor allows the F22c to provide ample surface area for an innately soft light, while still producing enough intensity to impact the scene.
FULL COLOR CONTROL
With its integrated RGBWW chipset, the F22c flexible panel grants you full control over creative lighting decisions, or adding a splash of color to your scene through its tunable CCT from 2,500K to 7,500K with green-magenta adjustment, 360º HSI control, 46 color gel presets, 15 built-in lighting effects, and 4 user-configurable preset buttons.
ALL-NEW X BRACKET
he F22c now features a new and improved X Bracket that provides enhanced rigidity and security for your light mat. The X Bracket’s support tubes each have a 2-stage spring-loaded design, ensuring that the light mat is stretched taut and the bracket always stays attached. It is easy to set up and packs compactly, while also featuring an integrated knurled baby pin for easy mounting.
View the amaran F21/F22 Bracket Replacement Program

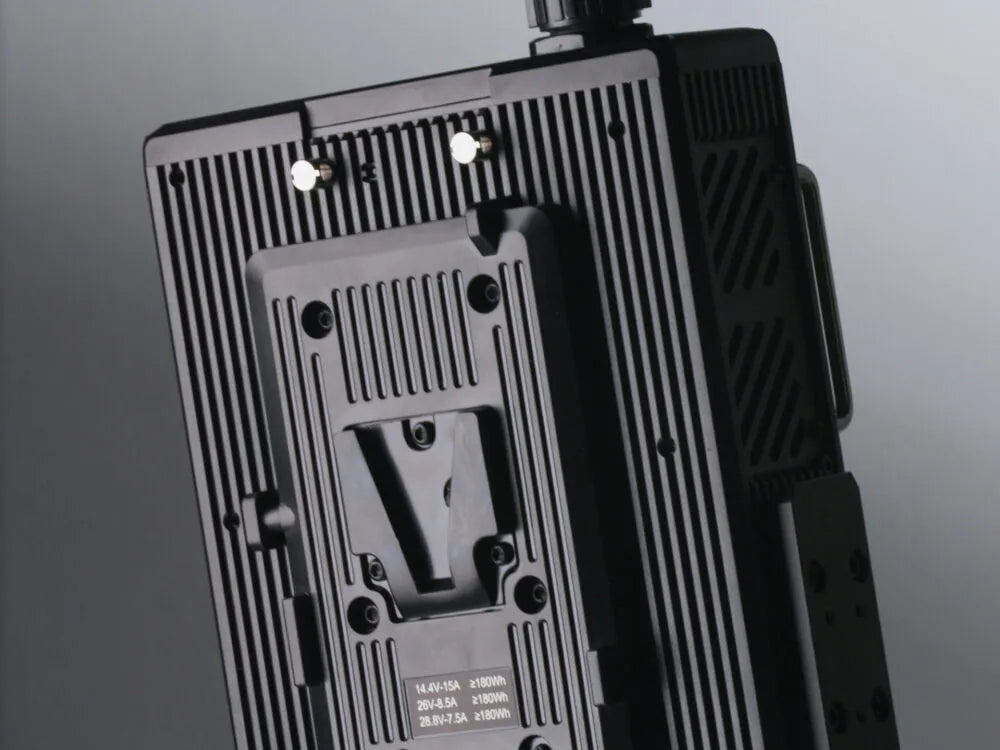

POWER FLEXIBILITY
For creators looking for a compact and portable lighting solution with a seamless user experience, the F22c control box features a multi-voltage V-Mount or Gold-Mount battery plate compatible with 14.4V/26V/28.8V/48V batteries. Full output can also be achieved using the AC power supply.
REDEFINED SOFT SOURCE
To add a beautifully controlled soft light to your scene, attach the included softbox, one of two strengths of diffusion cloths, or the included light control grid using the integrated hook-and-loop fabric to further finesse your lighting design. The F22c can also be combined with the amaran F22 Lantern with light control skirt to extend the fixture as a volumetric lantern or pancake light.

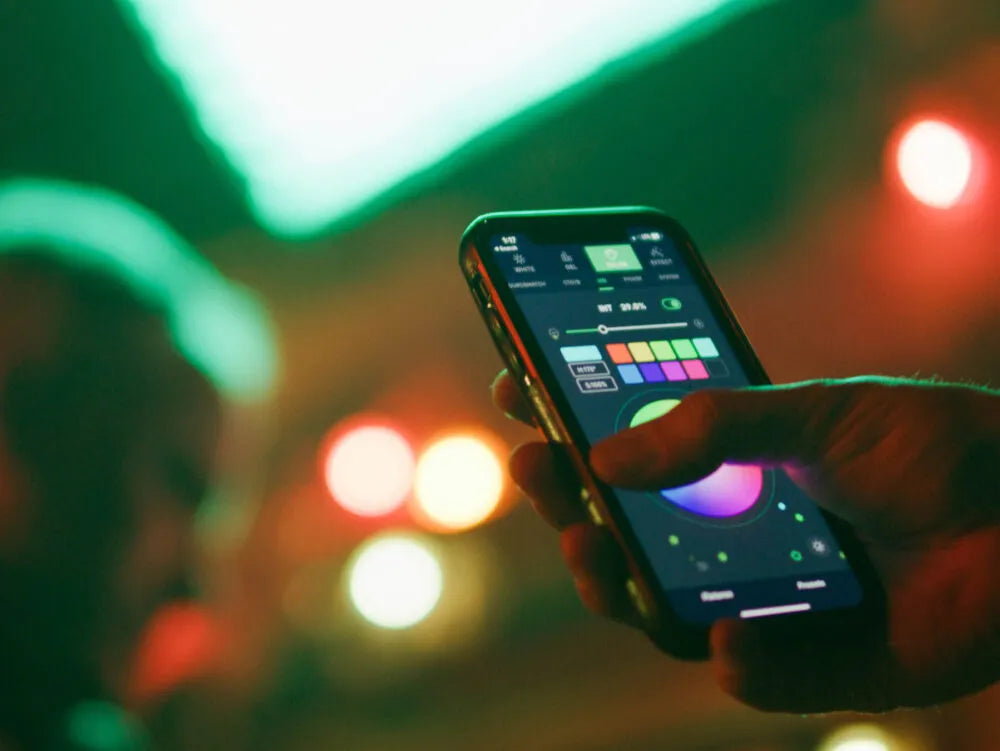

SIDUS LINK APP
For content creators who prefer wireless controls to spend more time behind or in front of the camera, the Sidus Link app will allow you to utilize tools unique to the Aputure and amaran ecosystems to control the F22c. With the Source Match, Color Picker, Gel Control and Custom FX functions all in the palm of your hand, choosing the perfect color for the scene has never been easier.

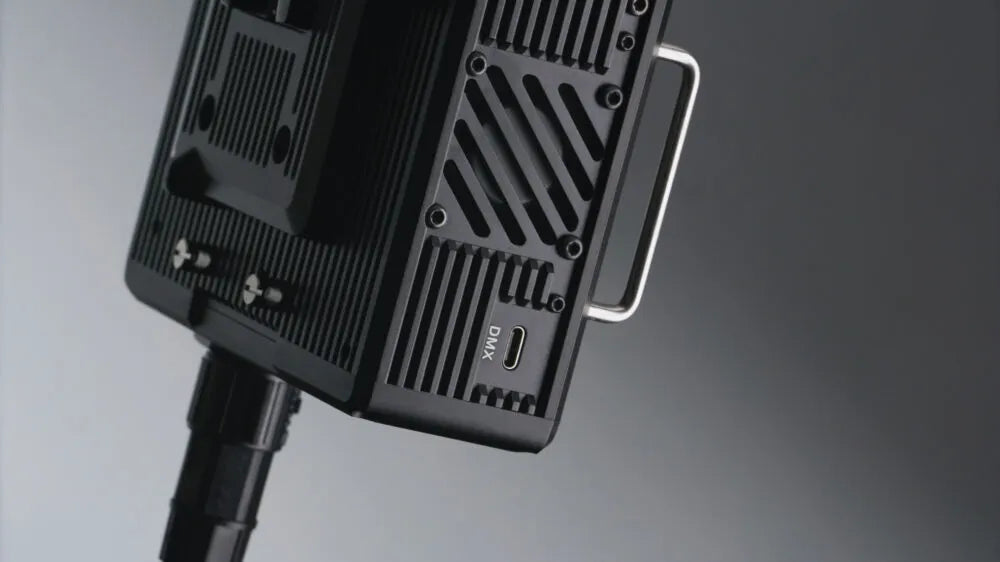

PROFESSIONAL CONTROLS
In addition to controlling your lighting design from Sidus Link, the F21c can be controlled externally via wired DMX with the USB-C to 5-Pin DMX512 In & Out Adapter*, adding professional-level control to your favorite flexible light mat.
* USB-C to 5-Pin DMX512 In & Out Adapter sold separately.
Technical Specifications
CCT
2500K~7500K
CRI
≥95
TLCI
≥97
CQS
≥96
TM-30 RF (Average)
94
TM-30 RG (Average)
102
SSI (Tungsten)
≥83
SSI (D56)
≥74
Color Chipset
Red, Green, Blue, Warm White, Cool White
Beam Angle (Control Grid)
45°
Max Power Output
≤200W
Max Power Consumption
≤240W
Operating Current
5A
AC Power Supply
48V DC
D-Tap Battery
12-28.8V DC
Battery Compatibility
16.8V, 26V, 28.8V full power output
DC Input
(3m) DC Self-locking
AC Power Cable
Self-locking IEC C13 AC Power Cable (4m)
Operating Temperature
-10°C ~ 40°C / -4°F ~ 113°F
Control Methods
On-board, Sidus Link App, DMX
Connectivity
Bluetooth 5.0 (Sidus Mesh)
Bluetooth Operating Range
≥80m / 262.5ft
Firmware Upgradeable
Sidus Link OTA
Display Type
OLED
Fixture Cooling Method
Natural Dissipation
Control Box Cooling Method
Natural Dissipation
Umbrella Holder
Yes
Soft Box
Yes
Mounting
1/4-20in * 3, Tilting Support Column
Estimated LED Lifetime (L70)
50,000 Hours
Estimated Color Shift Over Lifetime (CCT)
2% over 6,000 Hours
Certifications
CE, FCC, cTUVus, KC, NCC, ROHS
View all
View Less
Dimensions
Fixture (No Accessory)
60 x 60 x 0.5cm / 23.6 x 23.6 x .2in
Fixture (With Softbox)
62.5 x 62.5 x 10.5cm / 24.6 x 24.6 x 4.13in
Aperture
52 x 51cm / 20.4 x 20in
Control Box
19 x 15 x 7cm / 7.4 x 5.9 x 2.7in
Carrying Case
66 x 35 x 10.5cm / 25.9 x 13.7 x 4.1in
Weights
Fixture (No Accessory)
0.88kg / 1.9lbs
Fixture (With Softbox)
2.83kg / 6.25lbs
Control Grid
116g / 0.26lbs
Control Box
1.2kg / 2.6lbs
Power Supply
1.1kg / 2.4lbs
Mounting Bracket
0.66kg / 1.4lbs
Total w/ Case
7.92kg / 17.45lbs
Photometrics
| No Softbox | With Soft Box (1/2 Grid Cloth) | With Soft Box (2.5 Stop Diffusion) | ||
| .5M | 18,040 lux / 1,676 fc | 11,260 lux / 1,046 fc | 8,800 lux / 818 fc | |
| 2500K | 1M | 5,500 lux / 511 fc | 3,780 lux / 351 fc | 2,690 lux / 250 fc |
| 3M | 672 lux / 62 fc | 505 lux / 47 fc | 333 lux / 31 fc | |
| .5M | 18,760 lux / 1,743 fc | 11,900 lux / 1,106 fc | 9,110 lux / 846 fc | |
| 3200K | 1M | 5,750 lux / 534 fc | 4,030 lux / 374 fc | 2,870 lux / 267 fc |
| 3M | 703 lux / 65 fc | 534 lux / 50 fc | 352 lux / 33 fc | |
| .5M | 19,720 lux / 1,832 fc | 12,470 lux / 1,159 fc | 9,570 lux / 889 fc | |
| 4300K | 1M | 5,930 lux / 551 fc | 4,300 lux / 400 fc | 3,000 lux / 279 fc |
| 3M | 736 lux / 68 fc | 564 lux / 52 fc | 372 lux / 35 fc | |
| .5M | 21,260 lux / 1,975 fc | 13,400 lux / 1,245 fc | 10,340 lux / 961 fc | |
| 5600K | 1M | 6,420 lux / 596 fc | 4,610 lux / 428 fc | 3,260 lux / 303 fc |
| 3M | 790 lux / 73 fc | 603 lux / 56 fc | 402 lux / 37 fc | |
| .5M | 22,250 lux / 2,067 fc | 13,860 lux / 1,288 fc | 10,820 lux / 1,005 fc | |
| 6500K | 1M | 6,770 lux / 629 fc | 4,840 lux / 450 fc | 3,400 lux / 316 fc |
| 3M | 823 lux / 77 fc | 630 lux / 59 fc | 421 lux / 39 fc | |
| .5M | 23,250 lux / 2,160 fc | 14,610 lux / 1,357 fc | 11,340 lux / 1,054 fc | |
| 7500K | 1M | 7,080 lux / 658 fc | 4,980 lux / 463 fc | 3,550 lux / 330 fc |
| 3M | 870 lux / 81 fc | 661 lux / 61 fc | 441 lux / 41 fc | |
