amaran PT2c 2-Light Production Kit

AMARAN PT2C 2-LIGHT PRODUCTION KIT

2-Foot RGBWW Battery-Powered LED Pixel Tube

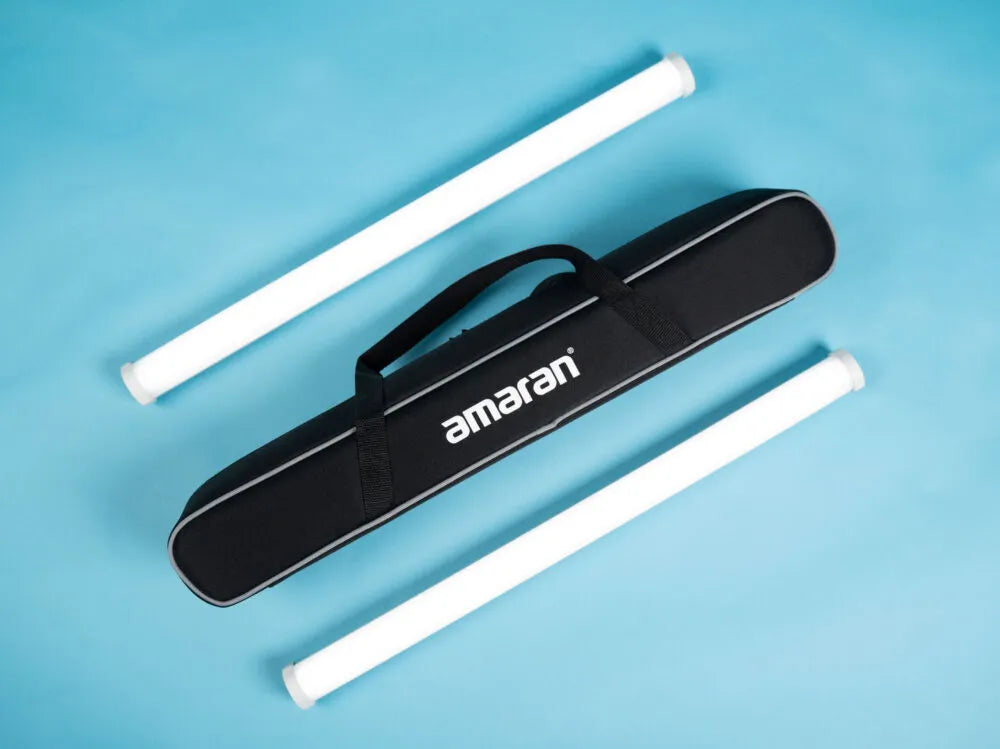

PRODUCTION READY

For filmmakers looking for more lights for in-camera practicals, symmetrical lighting for one or multiple subjects, and twice the output of a standalone fixture, the amaran PT2c 2-Light Production Kit unlocks even more possibilities to enhance your frame. The production-ready kit expands the mid-sized pixel tube's capabilities with 2x the available light, and is fully equipped with additional accessories for all your creative needs.

CREATE YOUR FLOW

The amaran PT2c 2-Light Kit is ideal for creators and filmmakers who need a pair of 2-foot battery-powered pixel tubes, featuring multiple pixels, RGBWW color quality, Sidus Link app control, and no-hassle mounting solutions, allowing you to unleash new creative possibilities.

DESIGNED FOR CREATORS

The PT2c shines as an effects, fill, eye light, and so much more. Whether used for practical lighting backgrounds, producing unique lighting effects for long-exposure photography, creating linear reflections over intricate sets for product cinematography, or adding visual interest to stylized music videos and commercials, the PT2c grants you the freedom to get creative and bring your lighting designs to life.

ENDLESS MOUNTING POSSIBILITIES

Creating interesting visuals and set pieces have never been easier with the PT2c 2-Light Production Kit. For enhanced versatility, the pixelated light has a 5-sided end cap design, allowing it to be positioned at 5 different angles, from to 45º, 90º, 135º, and 180º of rotation. The pixel tube kit is also designed to make mounting as easy possible with the 4 included magnetic T12 brackets, 2 3/8-16in eye bolts, and 2 floor stands.

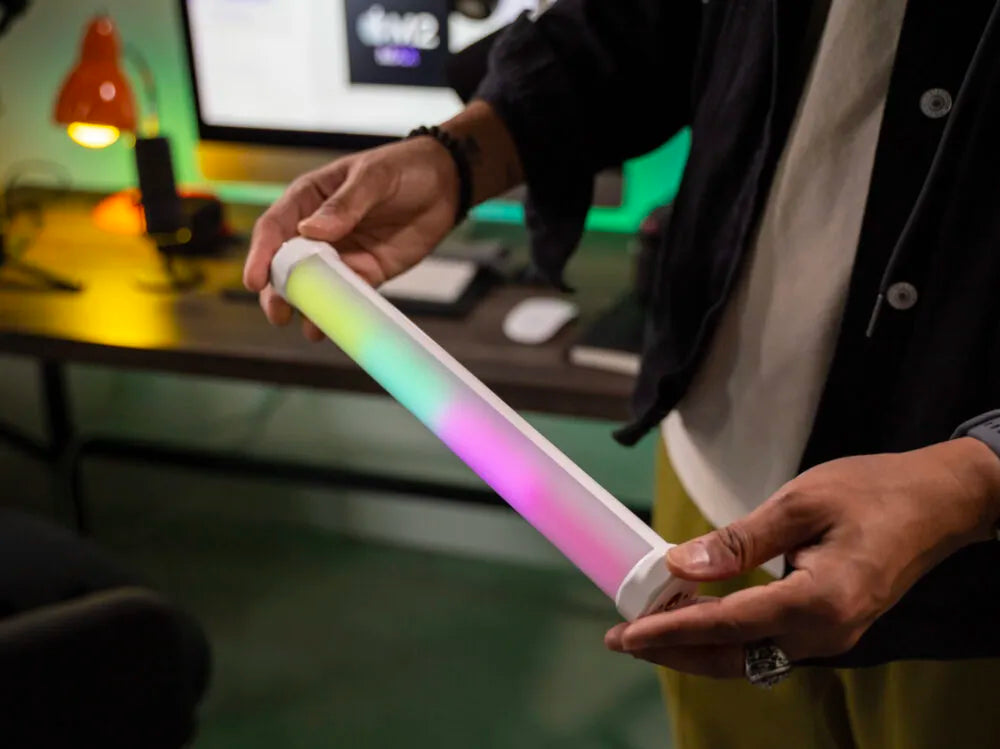

PERFECT PIXEL CAPABILITIES

With 8 lighting zones that can be independently controlled, the PT2c’s pixel capabilities introduce new and exciting avenues to the amaran family and outshine other lights with a new layer of effects. Use its 7 pre-programmed Pixel FX to create some truly unique and dynamic pixelated effects across its multiple pixels and take your creations to the next level.

BUILT-IN BATTERIES

The PT2c is powered by a 38.5Wh internal Lithium-ion battery for up to 170 minutes of run time, and can be charged via USB-C or even fast charge at 20W with PD Quick Charging, reaching its full capacity in under 3 hours. The integrated batteries can improve your workflow on-set by granting you the flexibility of placing or hiding the LED Pixel Tubes virtually anywhere.

ADVANCED CONTROLS

With the power of the Sidus Link Bluetooth app, you can control all of your Aputure and amaran lights in a scene, activate stunning lighting effects, and ensure that the Pixel Tubes are always up to date. For more advanced console controls, the 2 included amaran USB-C to DMX Adapters unlocks DMX control while simultaneously charging your pixelated tube light, making your workflow even more efficient and seamless.

Technical Specifications

CCT

2,700K - 10,000K

CRI (@5,600K)

95

TLCI (@5,600K)

98

CQS (@5,600K)

96

SSI (D56)

75

SSI (Tungsten)

85

TM-30 RF (@5,600K)

92

TM-30 RG (@5,600K)

100

Max Power Output

11.5W

Max Power Draw

16W

Pixel Mapping

8 Pixels

Lumens

721lm

Beam Angle

180º

Charging Input

USB Type-C PD 20W

Power Supply (Voltage)

USB PD 5V/9V/12V/15V/20V

Power Supply (Cable Length)

1.8m / 70.86in

Battery Voltage

14.8V

Battery Capacity

2600mAh, 38.48Wh

Battery Runtime

Approx. 170 Mins @ 100% Input

Charge Time

Approx. 170 Mins (5V/2A)

Approx. 210 Mins @ 75% Input

Operating Temperature

-10ºC ~ 40ºC / 14ºF ~ 104ºF

Approx. 294 Mins @ 50% Output

Control Methods

On-board, Sidus Link App, DMX via USB Type-C (Sold Separately)

Approx. 668 Mins @ 10% Output

Firmware Upgradeable

Sidus Link

Wireless Operating Range (Bluetooth)

≤80m / ≤262.5ft

Screen Type

TFT

IP Rating

IP20

CoolIng Method

Passive Cooling

View all

View Less

Dimensions

Fixture

φ42 x 600mm / φ1.65 x 23.6in

Magnetic T12 Bracket

54 x 46 x 42mm / 2.12 x 1.81 x 1.65in

Power Adapter

58 x 58 x 29mm / 2.28 x 2.28 x 1.14in

Eyebolt

36 x 20 x 40mm / 1.42 x 0.79 x 1.57in

Mini Tripod

φ35 x 177mm / φ1.38 x 6.97in

USB-C to DMX Adapter Cable

490mm / 19.3in

Carrying Case

655 x 165 x 150mm / 25.8 x 6.5 x 5.9in

Weights

Fixture

705g / 1.55lbs

Magnetic T12 Bracket

54g / 0.12lbs

Power Adapter

185g / 0.41lbs

Eyebolt

41g / 0.09lbs

Mini Tripod

175g / 0.38lbs

USB-C to DMX Adapter Cable

95g / 0.21lbs

Total with Case

3.778kg / 8.33lbs

What's in the Box

2x amaran PT2c

2x 45W Power Adapter with USB-C PD Power Cable (1.8m)

2x amaran USB-C to DMX Adapter with USB-C Input

4x Magnetic T12 Bracket

2x 3/8-16in Eyebolt

2x Floor Stand

1x Carrying Case

Photometrics

CCT0.5m1.0m
2,700K586 lux / 54 fc180 lux / 17 fc
3,200K595 lux / 55 fc181 lux / 17 fc
4,300K613 lux / 57 fc185 lux / 17 fc
5,600K647 lux / 60 fc195 lux / 18 fc
6,500K643 lux / 60 fc194 lux / 18 fc
7,500K612 lux / 57 fc185 lux / 17 fc
10,000K563 lux / 52 fc170 lux / 16 fc
Red354 lux / 33 fc113 lux / 10 fc
Green539 lux / 50 fc165 lux / 15 fc
Blue121 lux / 11 fc37 lux / 3 fc
