amaran Ray 660c

Maximum full-color output made for advanced creative spaces.

Brightest Output for Any Scenario

The amaran Ray 660c delivers up to 38,500 lux @ 1m (bare), making it the most powerful amaran COB to date. With 660W of full-color output, it lights larger spaces and wider frames with ease.

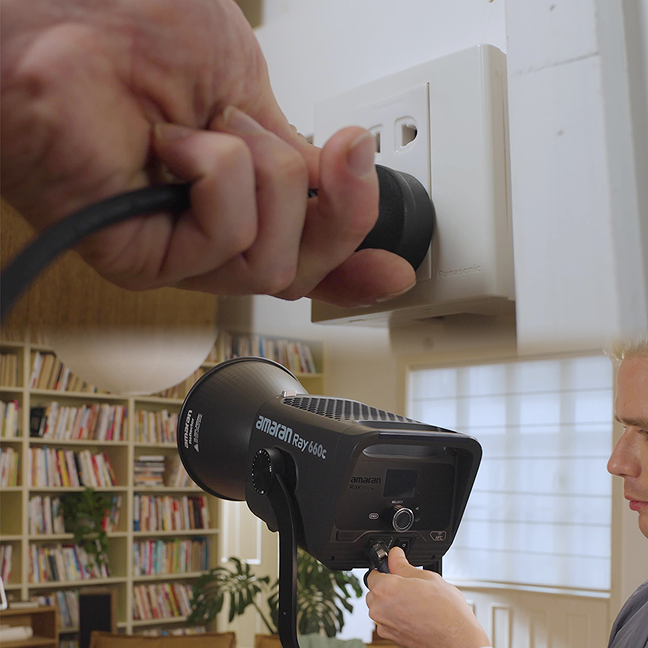

All-in-One Power. One AC Cable

As the first full-color COB in its power class to feature an all-in-one, monolight design, the amaran Ray 660c integrates the power supply directly into the light. Plug in a single AC cable for faster, cleaner setups and simplified on-set operation.

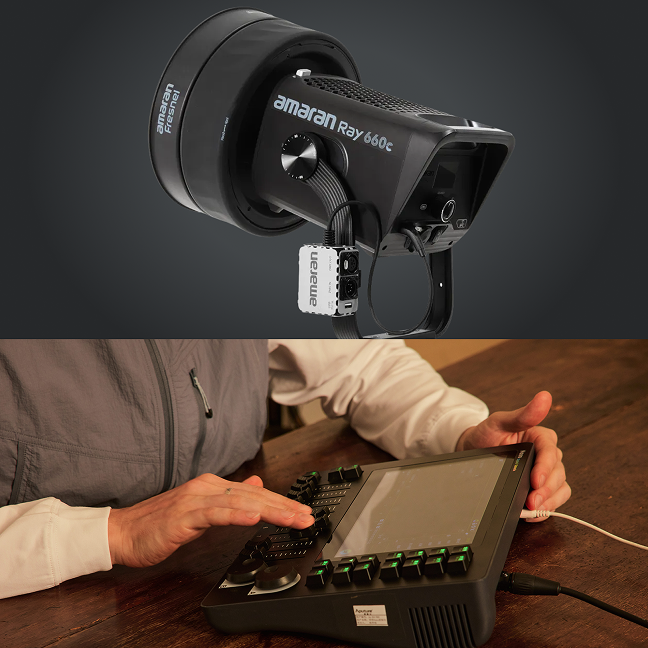

DMX Control for Advanced Workflows

Add DMX control via the optional USB-C to 5-Pin Adapter to integrate with industry-standard consoles and software. Trigger cues, sync multiple lights, and scale into advanced studio workflows

True-to-Life Color with OmniColor

Powered by the OmniColor light engine, the amaran Ray 660c delivers a fuller, more balanced spectrum – producing cleaner whites, truer skin tones, and more accurate color – achieving SSI scores of 87 (Tungsten) and 80 (D56).

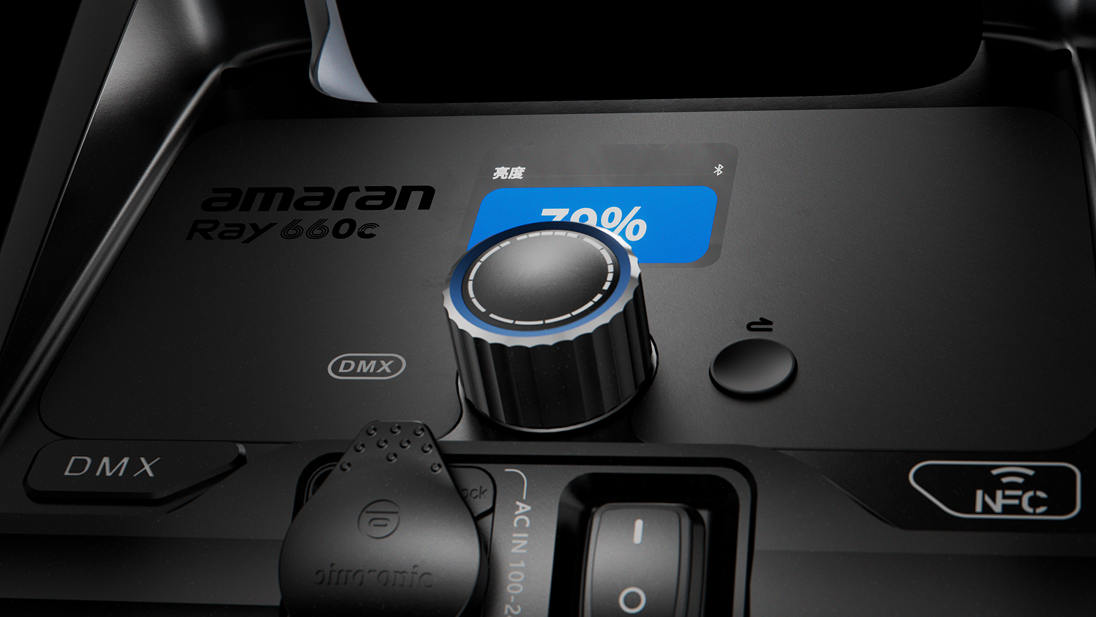

FlowTurn Knob – Adaptive Control

FlowTurn Knob – Adaptive Control

The new FlowTurn knob brings full, tactile control to your fingertips – fine, one-step adjustments when precision is needed or a single continuous spin to accelerate through settings when speed matters.

Explore the Light

Specifications

CCT (Standard)
2,300K - 10,000K
CRI
95+
SSI (Tungsten)
87
TM-30 RG (Average)
100
Max Power Output
660W
Color Chipset
OmniColor

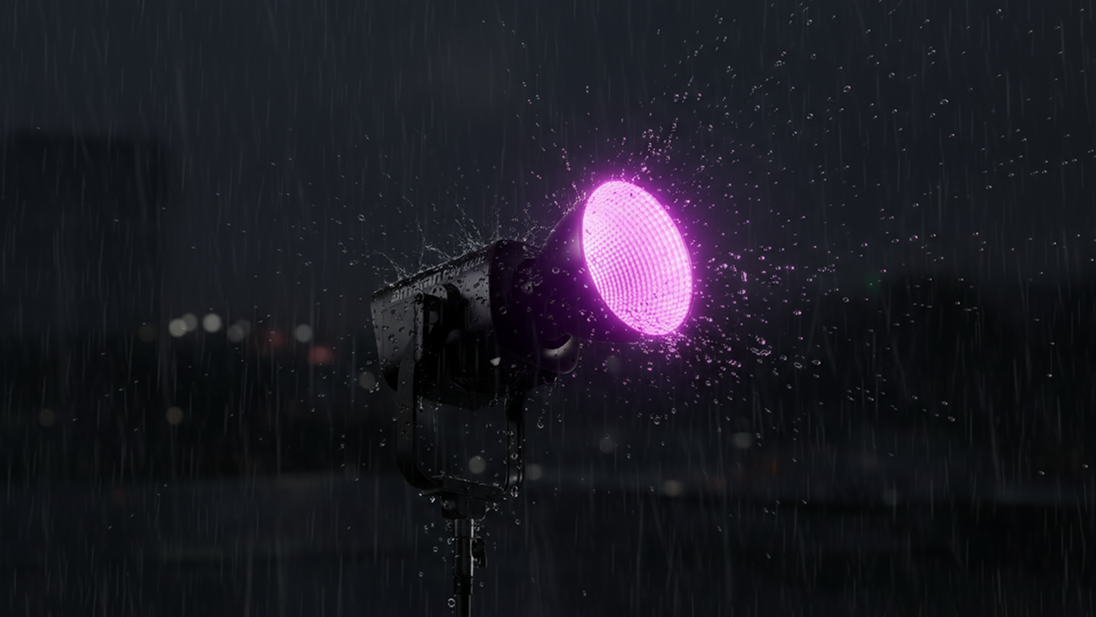

Weather Resistance Rating
IP54
Beam Angle (Reflector)
45º
Max Noise Level
28dBA (30ºC / 86ºF)
Storage Temperature
-20ºC - 80ºC / -4ºF - 176ºF
Firmware Upgradeable
amaran App, USB-C
Screen Type
TFT
Max Output
38,500 lux @ 1m (No Accessory)
CCT + (Expanded)
1,800K – 20,000K
TLCI
95+
SSI (D56)
80
TM-30 RF (Average)
94
Max Power Consumption
750W
Lumens
45,904 lumens
Beam Angle (No Reflector)
70º
Operating Voltage
AC 100V - 240V / 50 - 60Hz
Operating Temperature
-10°C - 40°C / 14°F - 104°F
Control Methods
On-board, amaran App, DMX via USB-C
Wireless Operating Range
≤80m / ≤262.5ft (Bluetooth)
Cooling Method
Active Cooling

Product comparison

amaran Ray 60c
amaran Ray 60c
Max Power Output
60W
Max Power Output
Color Temperature Range
-
Color Temperature Range
Max Output
3,910 lux @ 1m (No Accessory)
Max Output
SSI
80
SSI
$189.00

Free shipping with your purchase

amaran Ray 120c
amaran Ray 120c
Max Power Output
120W
Max Power Output
Color Temperature Range
-
Color Temperature Range
Max Output
6,850 lux @ 1m (No Accessory)
Max Output
SSI
80
SSI
$259.00

Free shipping with your purchase
